Advanced Cyclone Dust Collector Mobile Phone and Car Lithium Battery Recycling Machine

Large Image : Advanced Cyclone Dust Collector Mobile Phone and Car Lithium Battery Recycling Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Suny
Certification:	CE ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$10,000.00 - $65,000.00/sets
Packaging Details:	Wooden cases or plywood boxes
Supply Ability:	20 Set/Sets per Month

Contact Now

Advanced Cyclone Dust Collector Mobile Phone and Car Lithium Battery Recycling Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Power (kW):	75
Weight (KG):	15000	Key Selling Points:	High Productivity
Applicable Industries:	Manufacturing Plant, Recycling Machine, Manufacturing Plant,Recycling Machine	Showroom Location:	Egypt, Canada, United States, Thailand, Chile
Name:	Waste Car And Cell Phone Lithium Battery Recycling Machine For Sable	Raw Material:	Electronic Waste, Computer Boards, TV Boards, Smartphone Boards, Etc
Capacity:	300-1000kg/h	Final Products:	Copper And Resin Powder
Recover Rate:	99% And Above	Separating Method:	Air Flow Separator
Environment:	Cyclone Dust Collector	After-sales Service Provided:	Video Technical Support,Field Installation,
Port:	Qingdao

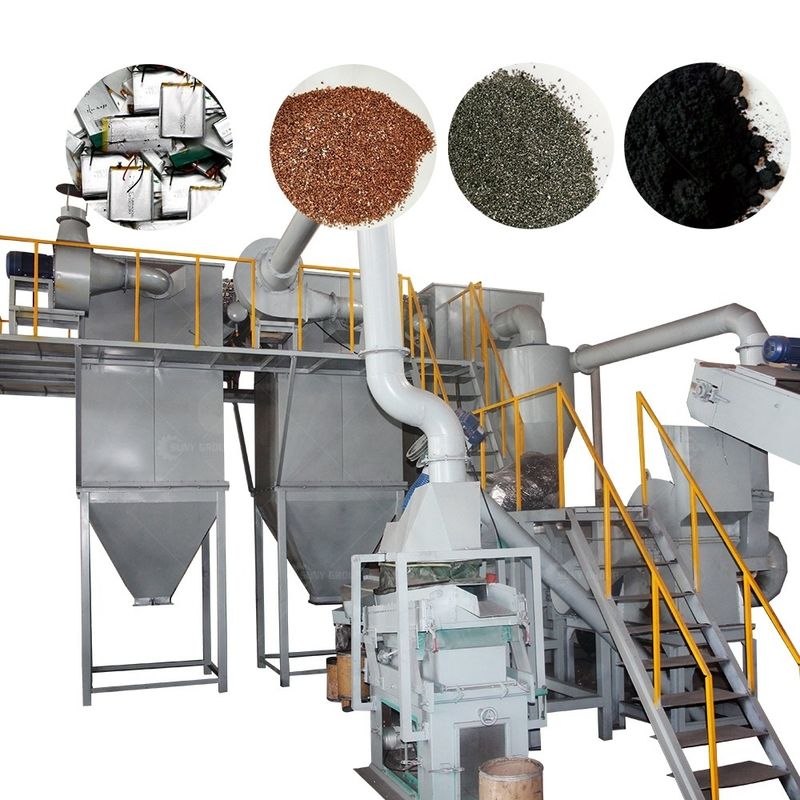

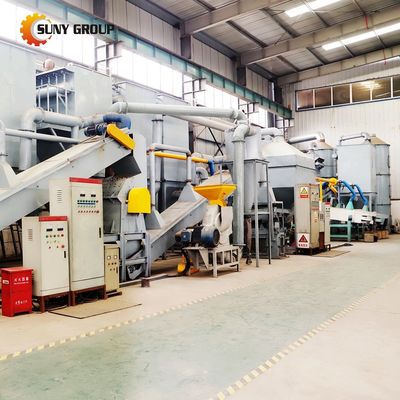

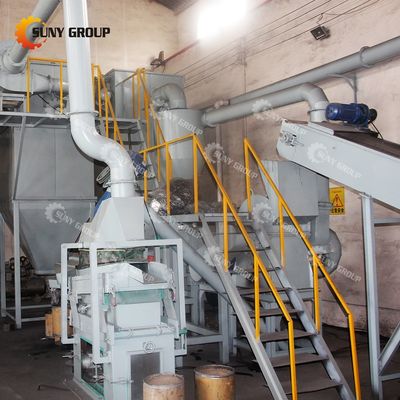

WASTE PCB RECYCLING PLANT

PRODUCT APPLICATION

Waste PCB Recycle Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

FINAL PRODUCTS

Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

TECHNICAL PARAMETERS

Model	ZYPCB-300	ZYPCB-500	ZYPCB-1000
Capacity	300 Kg/H	500 Kg/H	1000 Kg/H
Power	102 Kw	134 Kw	194 Kw
Weight	15 Ton	20 Ton	30 Ton
Dimension (m)	2055	2565	3065

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)

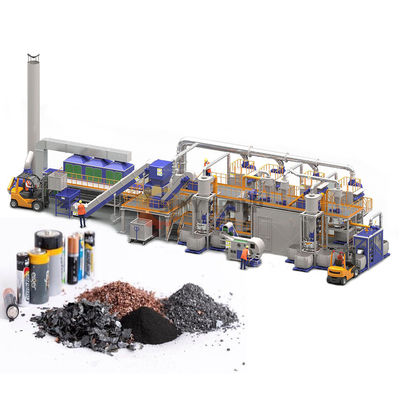

PRODUCT STRUCTURE

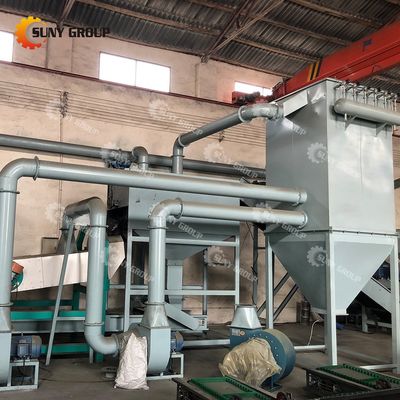

The Waste PCB Recycle Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.

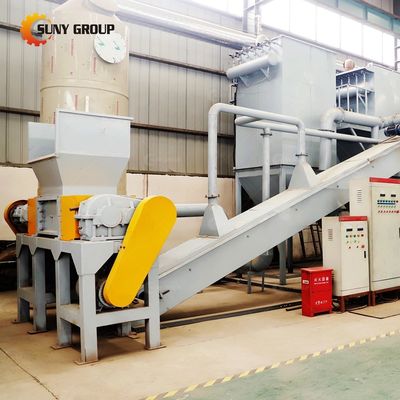

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

PRODUCT FEATURES

The Waste PCB Recycle Plant adopts PLC control system, suitable structure and layout, stable performance and low noise;

Dual Crushing System Ensures the Uniformity of Particle Sizes
